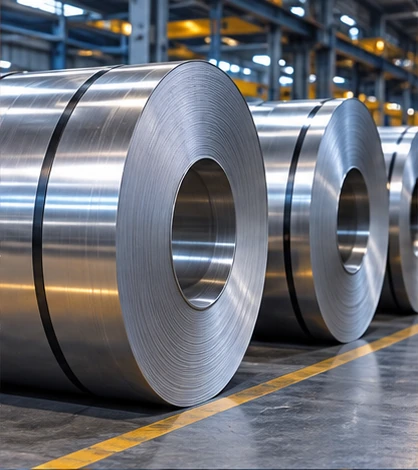

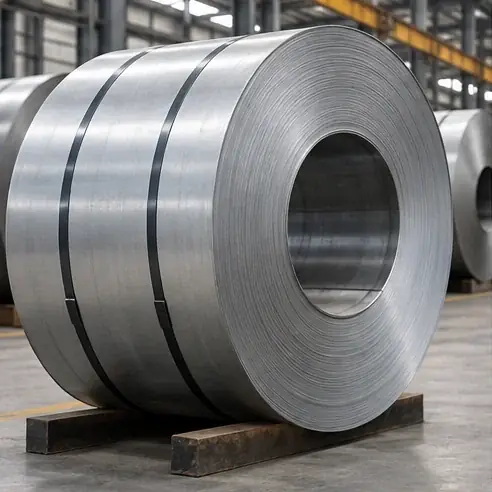

Illustrative product image. Confirm exact finish and form against the quoted material.
Continuous strip for processing and volume supply. Metalex can discuss grade, form, finish, dimensional tolerances, documentation and packing with your procurement team. Confirm stock and delivery against your purchase specification.
304/304L · 316/316L · 310S · 321 · 409 · 410 · Duplex 2205. Other grades: specifications on request.
Combined sheet/plate/coil catalogue range: width 1,250–2,500 mm and thickness 0.1–50 mm; this does not mean every thickness can be coiled. Agree actual coil thickness, width, inner diameter, weight and finish. The catalogue lists coils, foils, rolls and strip.
Listed stainless flat grades include 304/304L, 316/316L, 904L, 310/310S, 321, 409, 410, 202 and 17-4 PH; duplex S31803/S32205 and super duplex S32750/S32760. 430 is not in this catalogue; ask if needed rather than treating it as a listed grade.
Metalex catalogue (2022) describes a product range, not real-time stock or a test certificate. Confirm grade, dimensions and documentation for your enquiry.
| Detail | Options to specify |
|---|---|
| Flat-rolled coil | Stainless strip or sheet wound as a coil; agree the applicable material standard, grade and processing route. |
| Grade range | 304/304L · 316/316L · 310S · 321 · 409 · 410 · Duplex 2205 |
| Coil dimensions | State thickness × width, coil weight, inner/outer diameter and slit-edge requirements. |
| Coil surface | Specify mill finish, 2B, BA or other finish only when appropriate and available. |
| Documentation | Ask which certificate and heat or batch traceability documents are available for the specific material offered. |
For coils, give the grade/UNS, material standard, thickness, width, coil weight, coil ID/OD, finish, quantity and destination. Check slitting and certificate requirements.
A coil is wound strip rather than a cut sheet or plate. Confirm usable dimensions and processing needs.
| Grade | Typical selection reason | Check before ordering |
|---|---|---|
| 304 / 304L | General fabrication and mild process environments | Welded assemblies: verify L-grade certification |
| 316 / 316L | Added molybdenum for improved pitting resistance in many chloride environments | Assess chloride concentration, temperature and crevices |
| Duplex 2205 | Higher yield strength and better chloride SCC resistance than common austenitic grades | Confirm UNS S32205 or S31803 and welding procedure |
