METALEX PIPING SOLUTION

SS 304 Coils - Supplier & Exporter in India

Grade data, forms and enquiry details for SS 304 coils.

Catalogue context: Metalex’s 2022 sheet/plate/coil range spans 1,250–2,500 mm width, up to 6,000 mm cut length and 0.1–50 mm thickness across its listed flat forms; the cut-length figure does not describe coil length or guarantee a size in each grade. Confirm the actual offered size, finish and certificate.

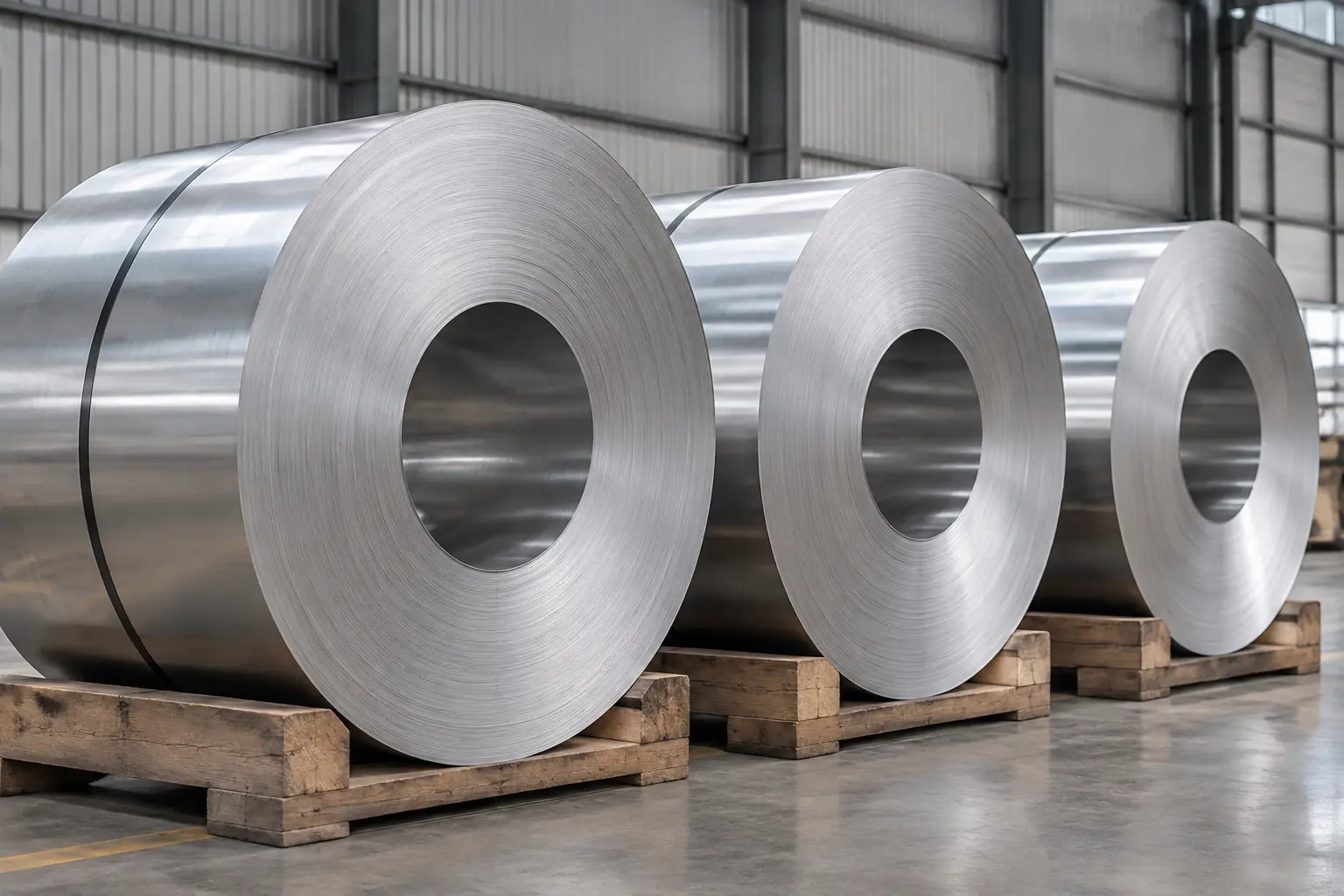

Illustrative ss 304 coils product form; grade and stock require confirmation

Illustrative product image; ask for a photo and documents for the actual offered lot.

Grade 304 is an austenitic stainless steel with good general corrosion resistance and formability. This grade is specified by its material standard and UNS designation; the right finish and tolerance depend on fabrication and service conditions.

For coils, send thickness, width and coil weight or length, plus finish, quantity and destination. Confirm size availability and any project-specific testing before placing an order. For welded work, ask about the corresponding low-carbon variant (304L) and its certificate.

Quick specifications

PropertySpecification / ordering detail
Material standardASTM A240 / ASME SA240 (flat-rolled stainless steel)
Grades coveredSS 304 (S30400); 304L (S30403) is a distinct low-carbon grade. Dual certification only when supported by the certificate.
Thickness rangeSpecify thickness; stock range on request
Width / size rangeSpecify width; availability on request
LengthCoil weight / length on request
Finish optionsMill, 2B or BA as appropriate; confirm processing route, slit edges and finish availability
FormFlat-rolled strip wound in coils; state coil ID, OD and weight

Equivalent designations

SystemDesignation
UNSS30400
Werkstoff Nr.1.4301
JISSUS 304
EN1.4301
BS304S31

Chemical composition

Published typical values by Outokumpu, mass %. A dash means no typical value stated in the cited summary, not zero or an ASTM limit. Request the actual MTC for supplied material.

Grade / basisCMnSiPSCrNiMoN
SS 304 typical (%)0.04————18.18.1——

Mechanical properties

ASTM A240 minimums for plate, sheet and strip, annealed condition. Hardness is not stated in this cited summary; check the applicable purchase standard and MTC.

Grade / ASTM A240 minimaTensile (MPa)0.2% yield (MPa)Elongation (%)Hardness
SS 30451520540—

Source: Outokumpu Core 304 / Steel Grades guide. Values vary by product form, condition and standard; not a substitute for the material certificate.

What these numbers mean for a buyer

The chemistry row shows a published typical production example, not min/max acceptance ranges. The mechanical row shows minimum values from the cited ASTM A240 summary, not guaranteed results for any individual coil or plate. If an EN 10204 3.1 mill certificate is required and available for the quoted lot, review its heat number and measured results. UNS identifies the alloy; thickness, finish and dimensional tolerances must still be specified separately.

Practical ordering checklist

  • Material grade and UNS, plus whether dual certification is required.
  • ASTM/ASME or EN standard and revision required by the project.
  • Thickness, width, coil weight or length, plus tolerances and edge condition.
  • Finish, quantity, delivery destination and packing requirements.
  • MTC, inspection, surface testing and any project-specific corrosion test.

Forms and finishes

Coils are flat-rolled forms, but ordering dimensions and feasible finishes vary by thickness, route and grade. Confirm the requested finish, tolerances and certificate for this specific coil before quoting.

Typical applications

Food processing equipment, general fabrication, tanks and architectural applications. Engineering selection must account for the actual fluid, temperature, environment and code.
