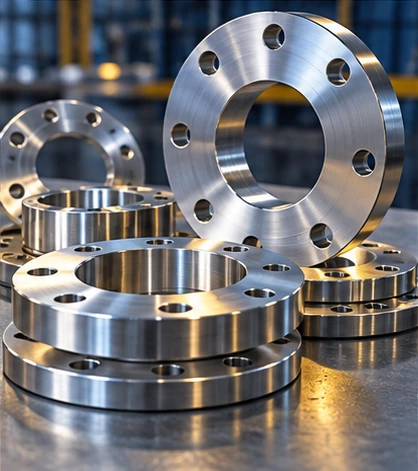

Illustrative product image. Confirm exact finish and form against the quoted material.
Connections for pressure and process lines. Metalex can discuss grade, form, finish, dimensional tolerances, documentation and packing with your procurement team. Confirm stock and delivery against your purchase specification.
Material grades are confirmed for the precise product and service. State the required standard and grade when enquiring.
Catalogue size: 1/2–48 in (15–1200 NB); classes 150–2500 and PN6–PN64. Weld-neck, slip-on, blind, lap-joint, threaded, orifice and spectacle-blind forms; spectacle blinds are highlighted. Check the applicable dimensional standard: ASME B16.5, B16.47, B16.48 or EN 1092.
Listed material families include stainless 304/304L, 316/316L and 904L; duplex F51/F60 and super duplex F53/F55; SMO 254 F44; carbon steel, alloy steel, nickel alloys, copper-nickel and titanium. Agree material standard and grade for each forged or plate-made flange.
Metalex catalogue (2022) describes a product range, not real-time stock or a test certificate. Confirm grade, dimensions and documentation for your enquiry.
| Detail | Options to specify |
|---|---|
| Flange type / standard | Weld-neck, slip-on, blind or lap-joint; specify the applicable dimensional and material standards, such as ASME B16.5 where appropriate. |
| Grade range | 304/304L · 316/316L · Duplex 2205 and other grades on request; confirm availability |
| Nominal size / rating | State NPS, pressure class, pipe schedule or bore, facing, bolt pattern and gasket requirements. |
| Facing / material | Raised face, flat face or ring-type joint as required; confirm grade and mating parts. |
| Documentation | Ask which certificate and heat or batch traceability documents are available for the specific material offered. |
Send the product type, applicable standard, grade or material, nominal size / rating, quantity, inspection requirements and destination. We will confirm what can be sourced for the exact enquiry.
Facing / material: Raised face, flat face or ring-type joint as required; confirm grade and mating parts. Material and dimensional standards, tests and certificate type should be agreed for this product before ordering.
| Grade | Typical selection reason | Check before ordering |
|---|---|---|
| 304 / 304L | General fabrication and mild process environments | Welded assemblies: verify L-grade certification |
| 316 / 316L | Added molybdenum for improved pitting resistance in many chloride environments | Assess chloride concentration, temperature and crevices |
| Duplex 2205 | Higher yield strength and better chloride SCC resistance than common austenitic grades | Confirm UNS S32205 or S31803 and welding procedure |
Detailed specifications for your grade, size and standard are available on request.
