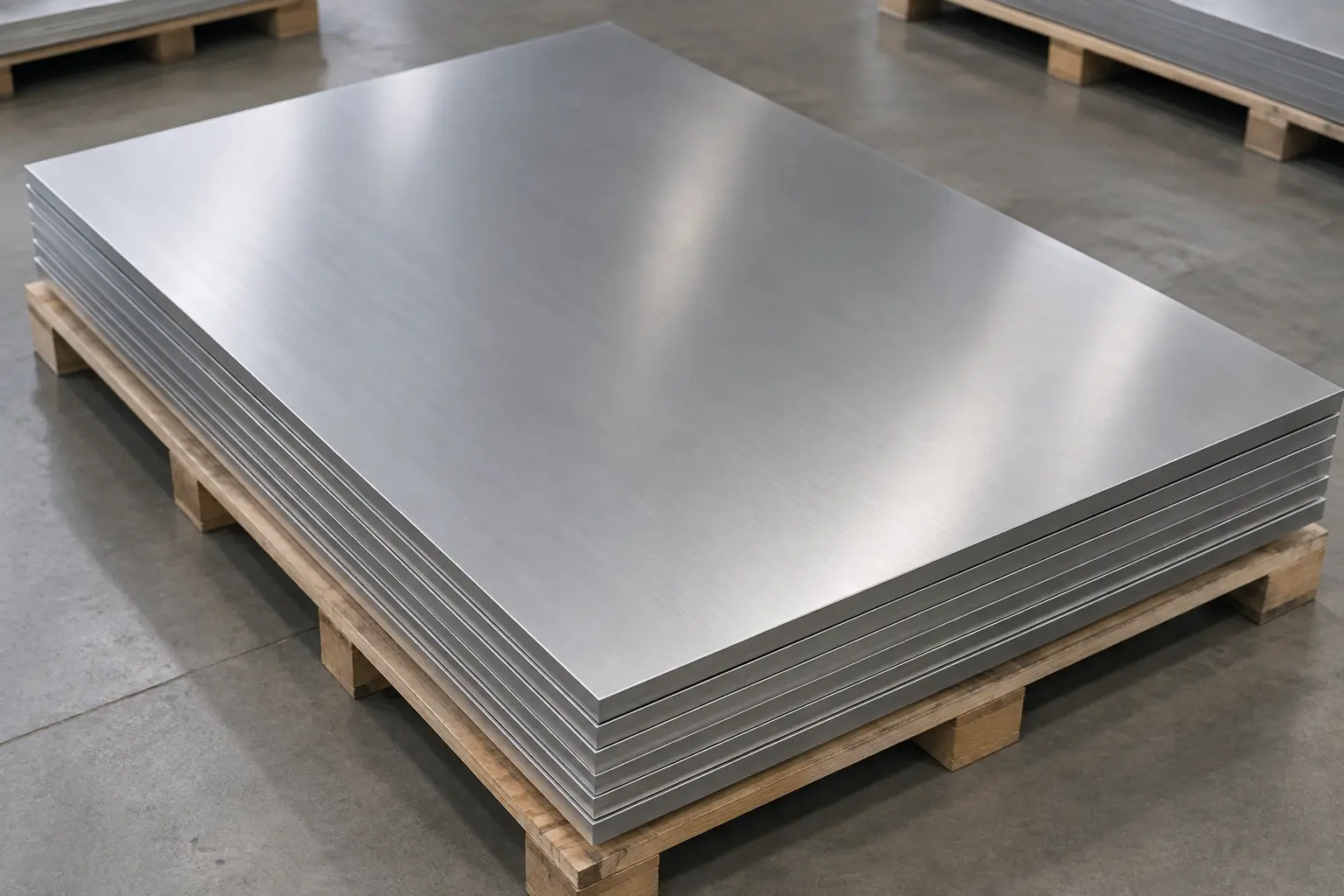

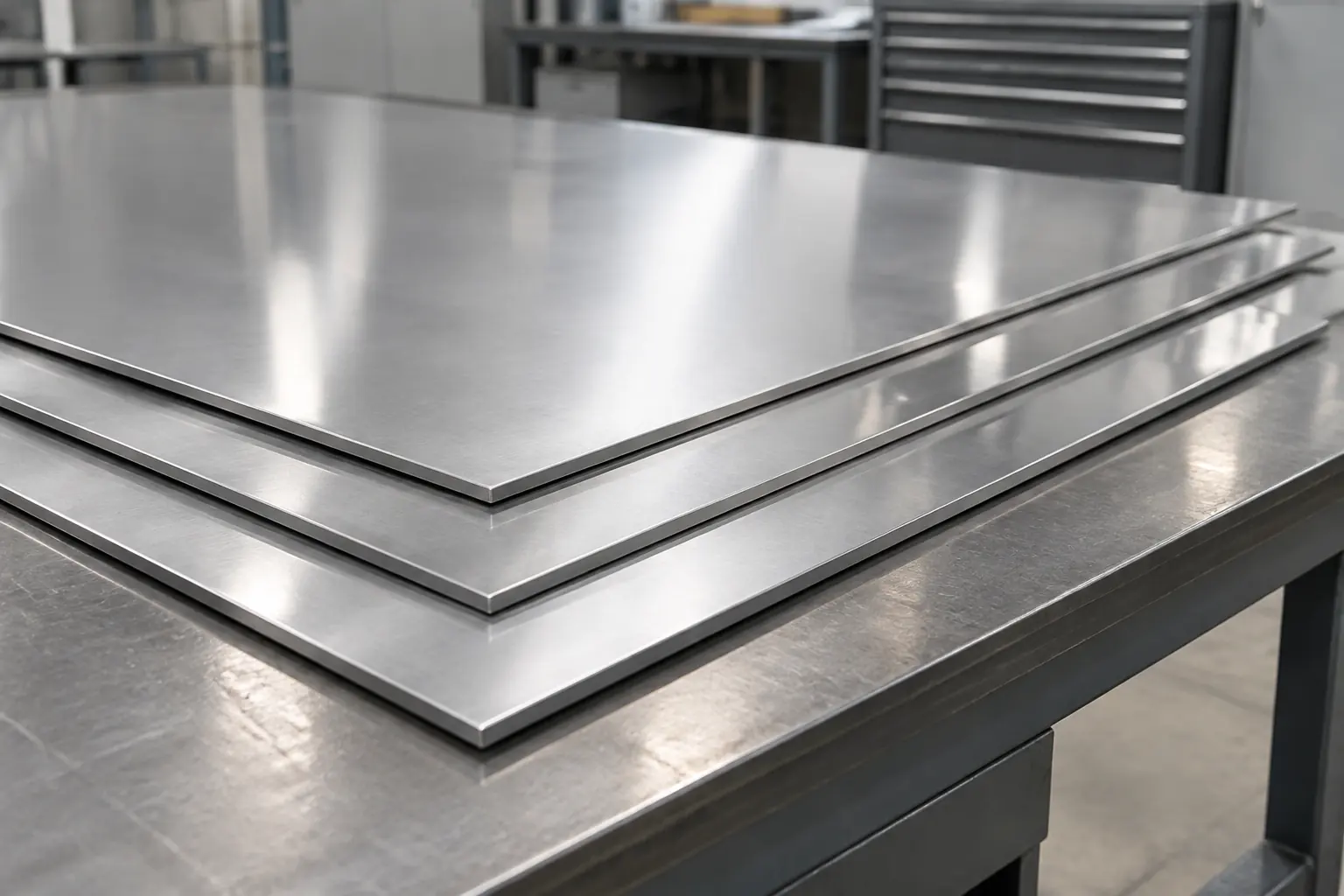

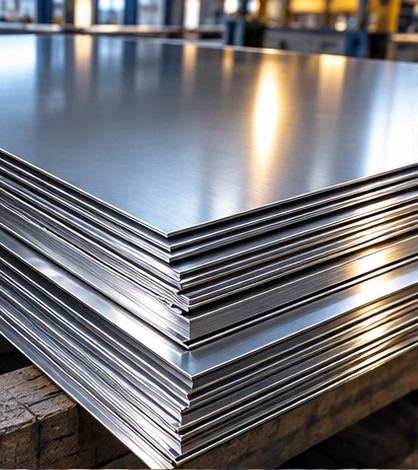

Illustrative product image. Confirm exact finish and form against the quoted material.
Precision-cut flat stock for fabrication and finishing. Metalex can discuss grade, form, finish, dimensional tolerances, documentation and packing with your procurement team. Confirm stock and delivery against your purchase specification.
304/304L · 316/316L · 310S · 321 · 409 · 410 · Duplex 2205. Other grades: specifications on request.
Combined sheet/plate/coil catalogue range: width 1,250–2,500 mm, length up to 6,000 mm and thickness 0.1–50 mm. This spans several forms; confirm the feasible sheet thickness and finish for the chosen grade. Plain, shim and perforated sheet and strip are listed.
Listed stainless flat grades include 304/304L, 316/316L, 904L, 310/310S, 321, 409, 410, 202 and 17-4 PH; duplex S31803/S32205 and super duplex S32750/S32760. 430 is not in this catalogue; ask if needed rather than treating it as a listed grade.
Metalex catalogue (2022) describes a product range, not real-time stock or a test certificate. Confirm grade, dimensions and documentation for your enquiry.
| Detail | Options to specify |
|---|---|
| Cut sheets | Flat-rolled stainless steel sheet under a chosen standard such as ASTM A240/ASME SA240. Confirm grade, thickness, surface finish and certification. |
| Grade range | 304/304L · 316/316L · 310S · 321 · 409 · 410 · Duplex 2205 |
| Dimensions | State thickness × width × cut length, tolerance and edge condition. |
| Surface finish | Specify 2B, BA, No.4 or another finish only when available in the chosen grade and thickness. |
| Documentation | Ask which certificate and heat or batch traceability documents are available for the specific material offered. |
For sheets, give the grade/UNS, material standard, thickness, width, cut length, finish, quantity and destination. Request a certificate for the lot offered.
Thin flat sheet and finish are the buyer’s focus; do not substitute a coil or thick plate photo for the quoted form.
| Grade | Typical selection reason | Check before ordering |
|---|---|---|
| 304 / 304L | General fabrication and mild process environments | Welded assemblies: verify L-grade certification |
| 316 / 316L | Added molybdenum for improved pitting resistance in many chloride environments | Assess chloride concentration, temperature and crevices |
| Duplex 2205 | Higher yield strength and better chloride SCC resistance than common austenitic grades | Confirm UNS S32205 or S31803 and welding procedure |
