Duplex 2205 Plates - Supplier & Exporter in India

Grade data, forms and enquiry details for Duplex 2205 plates.

Catalogue context: Metalex’s 2022 sheet/plate/coil range spans 1,250–2,500 mm width, up to 6,000 mm cut length and 0.1–50 mm thickness across its listed flat forms; the cut-length figure does not describe coil length or guarantee a size in each grade. Confirm the actual offered size, finish and certificate.

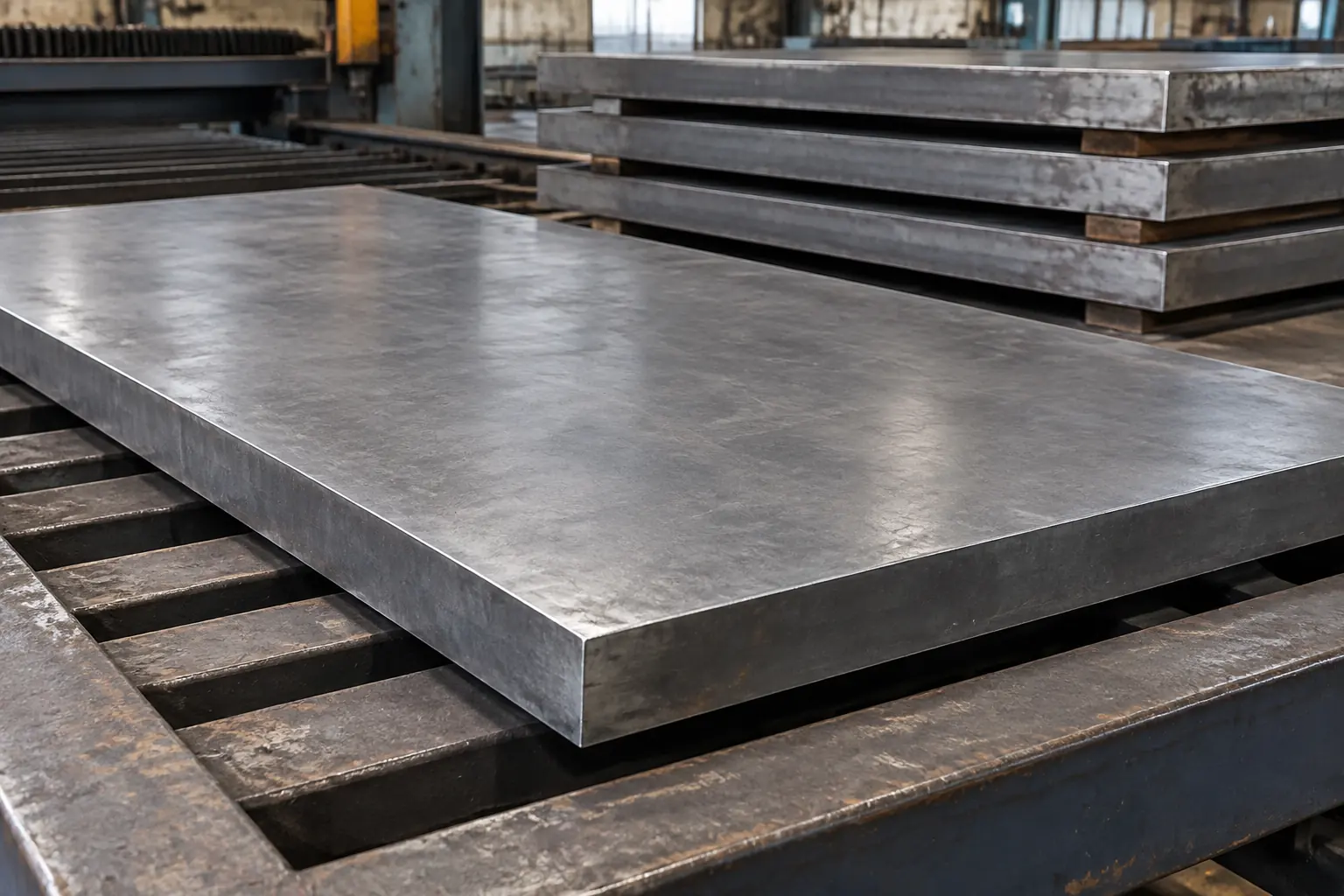

Illustrative duplex 2205 plates product form; grade and stock require confirmation

Illustrative product image; ask for a photo and documents for the actual offered lot.

Duplex 2205 combines higher strength than common austenitic grades with improved resistance to chloride stress corrosion cracking. This grade is specified by its material standard and UNS designation; the right finish and tolerance depend on fabrication and service conditions.

For duplex 2205 plates, send thickness, width and length, grade designation (S32205 or S31803), finish, quantity and destination. Confirm size and testing requirements before ordering; weld procedures and grade substitution require engineering review.

Quick specifications

PropertySpecification / ordering detail
Material standardASTM A240 / ASME SA240 (flat-rolled stainless steel)
Grades coveredDuplex 2205: specify UNS S32205 or S31803; dual certification only when the material certificate explicitly supports both.
Thickness rangeSpecify thickness; stock range on request
Width / size rangeSpecify width; availability on request
LengthCut length on request
Finish optionsMill or processed finish; polished/bright finishes only where feasible in the quoted thickness
FormHeavy flat plates; state cut dimensions and edge condition

Equivalent designations

SystemDesignation
UNSS32205 (also S31803)
Werkstoff Nr.1.4462
JISSUS 329J3L
EN1.4462
BS318S13

Chemical composition

Published typical values by Outokumpu, mass %. A dash means no typical value stated in the cited summary, not zero or an ASTM limit. Request the actual MTC for supplied material.

Grade / basisCMnSiPSCrNiMoN
Duplex 2205 typical (%)0.02————22.45.73.10.17

Mechanical properties

ASTM A240 minimums for plate, sheet and strip, annealed condition. Hardness is not stated in this cited summary; check the applicable purchase standard and MTC.

Grade / ASTM A240 minimaTensile (MPa)0.2% yield (MPa)Elongation (%)Hardness
Duplex 220565545025—

Source: Outokumpu Forta DX 2205 datasheet. Values vary by product form, condition and standard; not a substitute for the material certificate.

What these numbers mean for a buyer

The chemistry row shows a published typical production example, not min/max acceptance ranges. The mechanical row shows minimum values from the cited ASTM A240 summary, not guaranteed results for any individual coil or plate. If an EN 10204 3.1 mill certificate is required and available for the quoted lot, review its heat number and measured results. UNS identifies the alloy; thickness, finish and dimensional tolerances must still be specified separately.

Practical ordering checklist

  • Material grade and UNS, plus whether dual certification is required.
  • ASTM/ASME or EN standard and revision required by the project.
  • Thickness, width and cut length, plus tolerances and edge condition.
  • Finish, quantity, delivery destination and packing requirements.
  • MTC, inspection, surface testing and any project-specific corrosion test.

Forms and finishes

Plates are flat-rolled forms, but ordering dimensions and feasible finishes vary by thickness, route and grade. Confirm the requested finish, tolerances and certificate for this specific plate before quoting.

Typical applications

Chemical processing, marine systems, heat exchangers and demanding fabrication. Engineering selection must account for the actual fluid, temperature, environment and code.
